File:Square wave gen lid on.jpg

From Squirrel's Lair


Summary

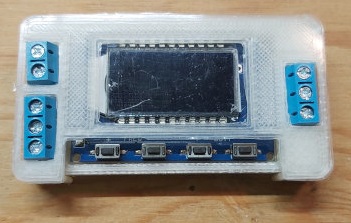

Square Wave Generator and terminal blocks installed in case with lid on. The four buttons to control the frequency and duty cycle are exposed.
